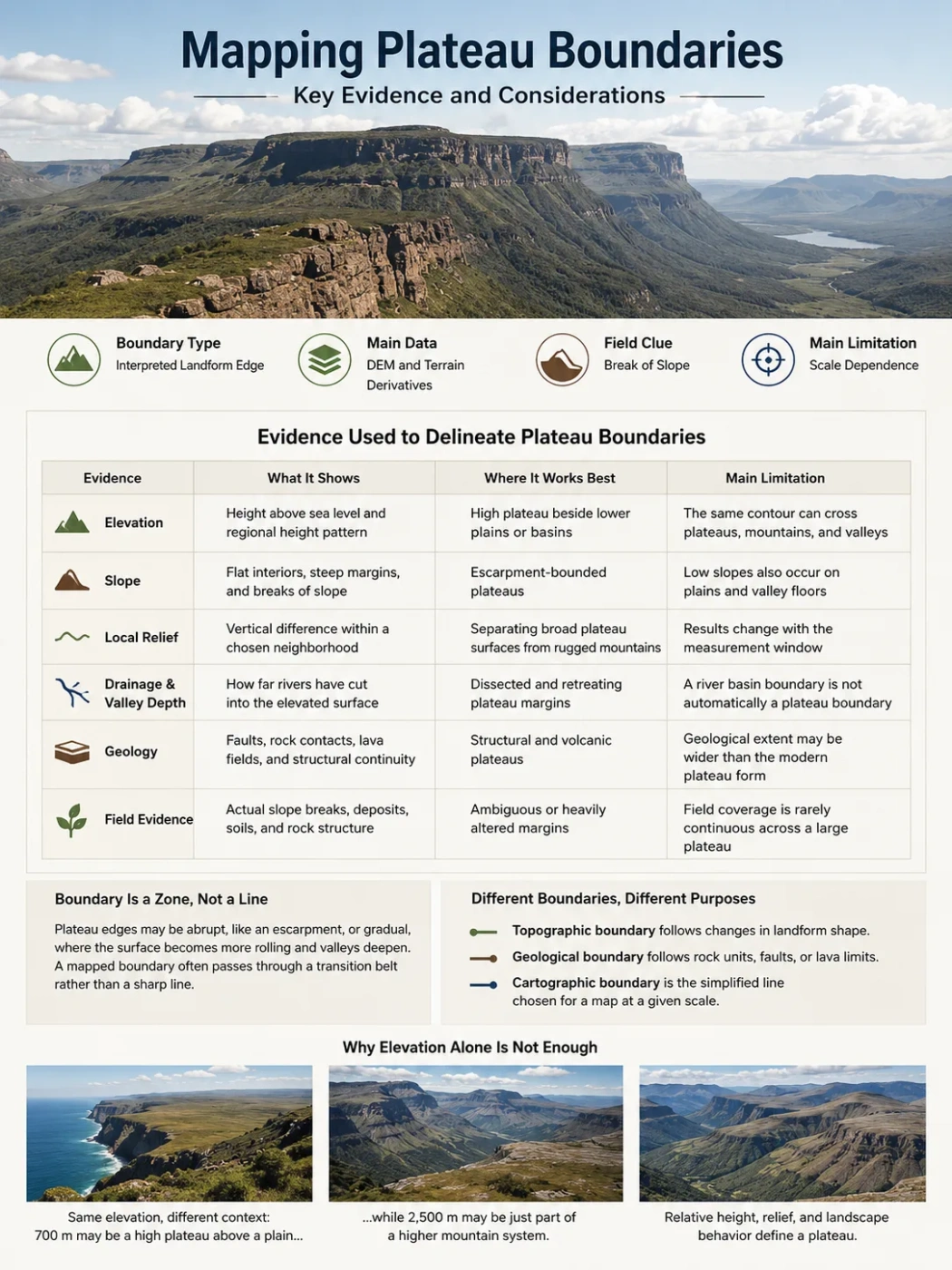

How Do Geographers Delineate Plateau Boundaries?

A plateau does not need a cliff around every side, and its edge is rarely identified by one contour line. A mapped boundary is an interpretation of where a broad, elevated landform stops behaving like a plateau and begins to merge with a plain, mountain belt, basin, coastal lowland, or another upland surface.

The method depends on the question being asked. A map of the upper plateau surface may place the line near the top of an escarpment. A physiographic map may include the escarpment and deeply cut margins. A geological map may follow faults, rock contacts, lava limits, or the surviving pieces of an older erosion surface.

A Plateau Boundary Is Usually a Zone, Not a Visible Line

Some boundaries are easy to recognize. A broad tableland may end at a steep escarpment that drops toward a low plain. The upper break of slope can be traced on a shaded-relief map, measured in a digital elevation model, and checked in the field.

Other plateaus fade into surrounding terrain over many kilometres. The surface may become more rolling, valleys may deepen, and isolated ridges may rise above the former level. There may be no single point where the land clearly stops being a plateau. In such places, the mapped line passes through a boundary belt.

Topographic, Geological, and Cartographic Boundaries

A topographic boundary follows a change in landform shape, such as a slope break or a rise in local relief. A geological boundary follows rock units, faults, folds, or volcanic deposits. A cartographic boundary is the line selected for a map after the terrain has been interpreted and simplified for a chosen scale.

These boundaries can overlap, especially where a fault scarp or resistant rock layer creates a sharp edge. They can also separate. Lava may extend beyond the area that still has a plateau-like surface, while erosion may leave isolated flat remnants outside the main mapped unit.

Why Elevation Alone Cannot Set the Edge

Plateaus are elevated in relation to nearby land, but they do not share one global minimum elevation. A surface at 700 metres may form a clear plateau above a coastal plain. A surface at 2,500 metres may sit inside a higher mountain system and behave more like an intermontane basin.

Absolute Elevation and Relative Height

Absolute elevation measures height above a vertical reference such as mean sea level. Relative height compares the surface with nearby valleys, plains, and mountain slopes. Plateau mapping needs both. Absolute elevation places the land in a regional height zone; relative height shows whether the surface actually stands above its surroundings.

A single contour line cannot make this distinction. The same 1,000-metre contour may cross a plateau rim, a mountain flank, a valley head, and a volcanic cone. It records equal height, not equal landform identity.

Why Flatness Is Also Relative

Plateaus are often described as flat or gently rolling, yet many contain hills, basins, lava cones, dunes, and deeply incised rivers. Geographers therefore assess the dominant surface over a chosen area rather than demanding a perfectly level top.

The size of that area matters. A small measurement window may classify every valley side and hill as a separate form. A larger window may reveal that all of them sit within one elevated regional surface.

The Measurements That Reveal a Plateau Margin

Modern delineation usually begins with a digital elevation model, or DEM. The elevation grid is converted into terrain measures that describe shape, position, and dissection. No single measure works across every plateau type.

Slope Finds Edges but Also Creates False Matches

A plateau interior often has lower average slopes than its rim. This makes slope a useful first filter. Yet plains, lake beds, floodplains, and broad valley floors may also have low slopes. A slope map must be read with elevation and relative position.

Local Relief Separates Uplands from Mountains

Local relief is the vertical difference within a moving window. Low local relief at high regional elevation can point to a plateau surface. Higher relief can mark mountains or a deeply dissected edge.

The window size changes the result. A narrow window responds to gullies and small ridges. A wide window shows regional relief but may smooth over real margins. Multi-scale analysis is often more useful than one fixed neighborhood.

Curvature Locates Breaks of Slope

Curvature measures how a surface bends. A convex break may mark the point where a plateau top rolls into a steep face. A concave break may mark the foot of that face. Where both are clear, the margin can be treated as a slope zone between two mapped lines.

Topographic Position Adds Regional Context

Topographic position compares each location with the average height around it. A broad surface that remains above its wider surroundings is easier to distinguish from a low plain. The choice of radius still matters: a plateau can appear flat at one scale and mountainous at another.

How Terrain Data Becomes a Mapped Boundary

The Mapping Purpose Comes First

A landform map, tectonic map, ecological region map, and river-basin study may use different plateau extents. The method should match the intended object. Otherwise, the line may look precise while answering the wrong geographic question.

The DEM Must Represent the Intended Surface

Some global elevation products are digital surface models. Their heights can include forest canopies, buildings, and infrastructure. A bare-earth terrain model removes those features as far as the data and editing method allow.

This difference is small across open rock or dry grassland but can affect low-relief, forested margins. Forest-and-building-removed versions of global DEMs can help, although no model removes every artifact or fills every gap perfectly.

Raster Results Need Landform Coherence

Cell-by-cell classification often produces a spotted boundary. Small hills, roads, valley sides, and local noise may break one plateau into hundreds of pieces. Object-based methods group connected cells into larger terrain units and preserve the shape of the landform.

This is especially useful where narrow valleys cut through a broad surface. The valleys remain visible, but they do not automatically divide the regional plateau into unrelated fragments.

Where the Interior Surface Gives Way to the Margin

A plateau edge can be described as a sequence rather than one line: interior surface, upper break of slope, marginal slope or escarpment, lower break of slope, and surrounding terrain. Different maps may choose different parts of this sequence.

Upper Edge, Lower Edge, or Entire Escarpment?

A map of usable upland surface may follow the upper break. A map of the full physiographic province may place the outer line at the footslope. An erosion study may map both and treat the escarpment between them as a separate landform belt.

The difference can change an area estimate by a large amount where the marginal slope is broad, irregular, or deeply cut by tributaries.

Rivers Can Cut Through a Plateau Without Erasing It

Many plateaus are crossed by canyons and branching valleys. These channels remove material from the surface, but they do not automatically remove the surrounding land from the plateau province. The mapping question is whether the regional elevated surface remains traceable across the incision.

Dissection Changes the Surface, Not Always the Regional Identity

A dissected plateau may have high local relief because rivers have cut below an older upland level. The interfluves can preserve matching summit heights, soils, rock layers, or erosion surfaces. Those remnants help geographers reconstruct the former continuity of the plateau.

At a detailed scale, the canyon floor and valley walls are separate landforms. At a regional scale, they may sit inside the plateau boundary. Both readings can be correct because they describe different levels of terrain organization.

Drainage Density Marks the Advance of Erosion

Near some margins, streams become more closely spaced and valleys deepen toward the plateau interior. This pattern can reveal headward erosion, where channel heads migrate into the upland and break the surface into smaller remnants.

Drainage data must be used carefully. A watershed divide separates river basins, while a plateau boundary separates landform regions. The two lines may overlap along a rim, yet they answer different questions.

Why Geology May Shift the Boundary

Topography shows the present shape of the land. Geology explains why that shape exists and whether separated surfaces belong to one structural or volcanic unit. This evidence can move a boundary away from the most obvious contour or slope line.

Structural Plateaus

Structural plateaus often develop on broad areas of nearly horizontal or gently tilted rock. Their margins may follow faults, folds, resistant strata, or contacts with strongly deformed mountain rocks. A sharp topographic edge can reflect this structure, but erosion may blur parts of the contact.

Volcanic Plateaus

A volcanic plateau may be built by repeated lava flows that spread across older terrain. Geologists can map the lava province beyond the area that still appears flat. Rivers may cut the lava into separated blocks, and later sediments may bury parts of the original flow edge.

Uplifted Erosion Surfaces

Some plateaus preserve pieces of an older low-relief surface raised by tectonic movement. Faulting may lift different blocks to different heights, while erosion removes the connecting areas. Matching rock relations, weathering profiles, and surface form can link remnants that no longer touch.

Material-Defined Plateaus

The name of a plateau can refer partly to its surface material. The Loess Plateau, for example, is shaped by thick wind-blown sediment, water erosion, gullies, ridges, and tableland remnants. The limit of thick loess, the limit of plateau-like relief, and the regional geographic boundary are related but not identical.

Scale and Resolution Change the Shape of the Plateau

Every plateau boundary is tied to a map scale. A global map needs broad, smooth regions. A local geomorphology map may trace individual scarps, gullies, valley heads, and isolated remnants.

What Coarse Elevation Data Does

• It can smooth narrow valleys and small scarps.
• It may connect plateau fragments across low saddles or incised channels.
• It can make margins look simpler and more continuous.
• It may hide small tablelands and narrow plains.

What Finer Elevation Data Does

• It records smaller valleys, breaks of slope, and local surface texture.
• It can produce very irregular edges that need cartographic smoothing.
• It may respond to roads, quarries, buildings, vegetation, or DEM artifacts.
• It can split one regional surface into many local terrain patches.

Recent 30-m landform mapping on the Tibetan Plateau produced more detailed mountain and plain boundaries than a 90-m version of the same analysis. The finer grid also created more complex patch shapes. This illustrates a basic rule: resolution changes both detail and classification behavior.

Thresholds, Objects, and Newer Digital Methods

Automated mapping needs decision values. A project may set a maximum slope for a plateau surface, a minimum relative height, a minimum connected area, or a change in relief that marks the margin. These values are useful, but they are not universal natural constants.

Why One Threshold Rarely Travels Well

A slope value that separates a dry lava plateau from nearby mountains may fail on a humid plateau with rounded hills. A local-relief value suited to a huge high plateau may erase a smaller coastal tableland. Thresholds need testing against known terrain and should be adjusted for scale, rock type, erosion style, and data quality.

From Pixels to Geomorphic Objects

Older automated approaches often classified each cell from local elevation derivatives. Newer methods are more likely to preserve connected geomorphic objects. They combine neighboring cells, examine the shape of each patch, and reduce the broken pattern caused by local noise.

Object-based classification is valuable on high plateaus where plains, basins, hills, and mountain blocks form a nested landscape. It allows a broad plateau province to contain several internal landform classes without losing its regional identity.

Slope-Cost Distance

Slope-cost distance treats movement across gentle terrain as a low accumulated cost. The cost rises faster when a path reaches steep mountain fronts or escarpments. A sudden change in accumulated cost can help locate the edge of a plain or plateau-like surface while retaining the continuity of the terrain object.

The method still depends on the starting features and the selected cost break. It is an aid to interpretation, not a universal automatic boundary.

Combining Bottom-Up and Top-Down Regionalization

Recent plateau regionalization has also joined two directions of analysis. Bottom-up methods merge neighboring terrain units that share similar properties. Top-down methods divide a broad known region into internal classes. Using both can help when the outer extent is debated and the plateau contains mountains, basins, plains, and transitional belts.

A 2026 geomorphological regionalization of the Mongolian Plateau used this combined logic with clustered terrain indicators. The approach reflects a wider move toward boundaries based on spatial patterns and connected regions rather than one elevation line.

Why Two Reliable Plateau Maps Can Disagree

Different boundaries do not always mean that one map is wrong. They often show different definitions, scales, data sources, or rules for handling marginal terrain.

Peripheral Mountains Create a Recurring Problem

Large high plateaus often contain or border mountain ranges. One map may define the plateau as the high interior surfaces between those ranges. Another may treat the plateau as a broad tectonic system that includes much of the mountainous rim.

This difference affects reported area, average elevation, climate zones, river sources, and the apparent position of the outer boundary. Values should therefore be read together with the map definition.

Disconnected Remnants Need an Explicit Rule

A mesa beyond the main escarpment may be a surviving piece of the former plateau. A narrow valley may separate two surfaces that remain part of one regional unit. Mapping can include these as outliers, connect them to the main polygon, or show them as related but separate forms.

Without an explicit rule, area estimates become hard to compare even when the underlying elevation data is the same.

Four Plateaus, Four Boundary Problems

Real plateaus show why one method cannot be applied mechanically across the globe.

Colorado Plateau: Structural Contacts and Escarpments

The Colorado Plateau has several relatively clear province boundaries. Faults and volcanic plateau margins help define the western side. The Mogollon Rim forms a visible southern edge in many places, while contacts between sedimentary rocks and deformed or uplifted crystalline rocks help distinguish the plateau from parts of the Rocky Mountains.

Its interior remains varied, with canyonlands, volcanic high plateaus, basins, and uplifted sections. A clear outer province does not imply a uniform inner surface.

Tibetan Plateau: A Plateau System with Mountains and Basins

The Tibetan Plateau cannot be reduced to one flat top surrounded by one scarp. High plains, closed basins, broad valleys, and major mountain chains form a connected elevated system. Delineation therefore relies on regional elevation and relief patterns as well as the transition toward surrounding mountain belts and lower terrain.

Object-based mapping is useful here because it can preserve the broad plateau extent while classifying internal plains, hills, and mountains separately.

Deccan Plateau: Lava Province Versus Modern Surface

The Deccan Plateau includes broad uplands underlain in large part by stacked basalt flows. Its western edge is strongly expressed by the Western Ghats, but other margins are more gradual and interact with river basins, older rock terrains, and regional uplands.

A geological map of Deccan volcanic rocks and a physiographic map of the Deccan Plateau need not show the same outline. The lava province describes material and origin; the plateau boundary describes present regional form.

Loess Plateau: Material, Gullies, and Gradual Transitions

The Loess Plateau combines thick wind-deposited sediment with intense river and gully erosion. Some tableland edges have clear slope breaks, while other surfaces grade into ridges, hills, and gully networks without a sharp line.

Recent 30-m mapping has treated morphology, dominant surface processes, and material together rather than relying on elevation alone. This is useful where the landform name refers to both an elevated region and a distinct sedimentary landscape.

Field Checks That Refine a Digital Boundary

DEM analysis can outline candidate margins, but field evidence helps decide whether a break is geomorphic, structural, erosional, or merely an artifact of the data.

• Upper and lower slope breaks: Confirm where the plateau surface rolls into the marginal slope and where that slope reaches lower terrain.
• Rock attitude: Record whether strata remain flat, tilt toward the margin, or end at a fault or fold.
• Surface deposits: Compare gravel caps, weathering profiles, loess cover, lava layers, and old soils across separated remnants.
• Valley form: Measure channel depth, valley width, knickpoints, and the position of active valley heads.
• Summit correlation: Test whether isolated flat-topped areas align with the main plateau surface after accounting for fault displacement.
• Vegetation and structures: Check whether apparent relief comes from tree cover, buildings, mining, roads, or other surface features.
• Transition width: Record a belt where no single field line can be defended rather than forcing false precision.

How Boundary Uncertainty Should Appear on a Map

Natural boundaries vary in clarity. The map should show that variation rather than giving every segment the same certainty.

Single Interpreted Line

A line works where the edge is narrow and well supported by a scarp, fault, rock contact, or repeated field observations. It is also useful on small-scale maps where a transition belt would be too narrow to display.

Boundary Belt

A shaded or outlined belt is more honest where relief changes gradually. It can cover the area between the upper slope break and the foot of the margin, or the wider zone where several classification measures change.

Confidence Classes

Boundary segments can be marked as high confidence, moderate confidence, or low confidence. Confidence may reflect data resolution, field control, agreement between terrain and geology, and the sharpness of the transition.

Information Needed to Reproduce the Boundary

• The definition of plateau used for the map
• The DEM type, grid spacing, vertical reference, and preprocessing
• The map scale and minimum mapped area
• The terrain measures and neighborhood sizes
• The thresholds or clustering rules
• The use of geology, drainage, imagery, and field checks
• The method used to smooth, connect, or remove small polygons
• The treatment of escarpments, peripheral mountains, valleys, and outliers
